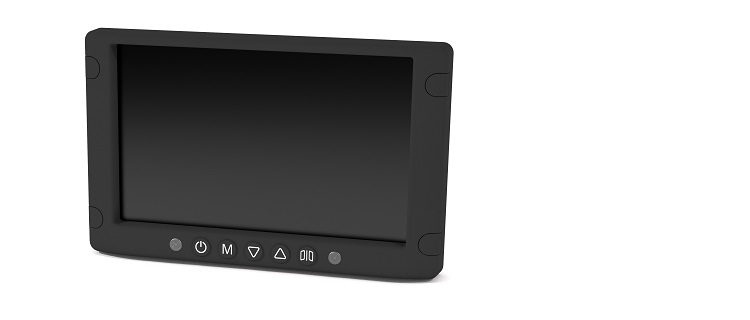

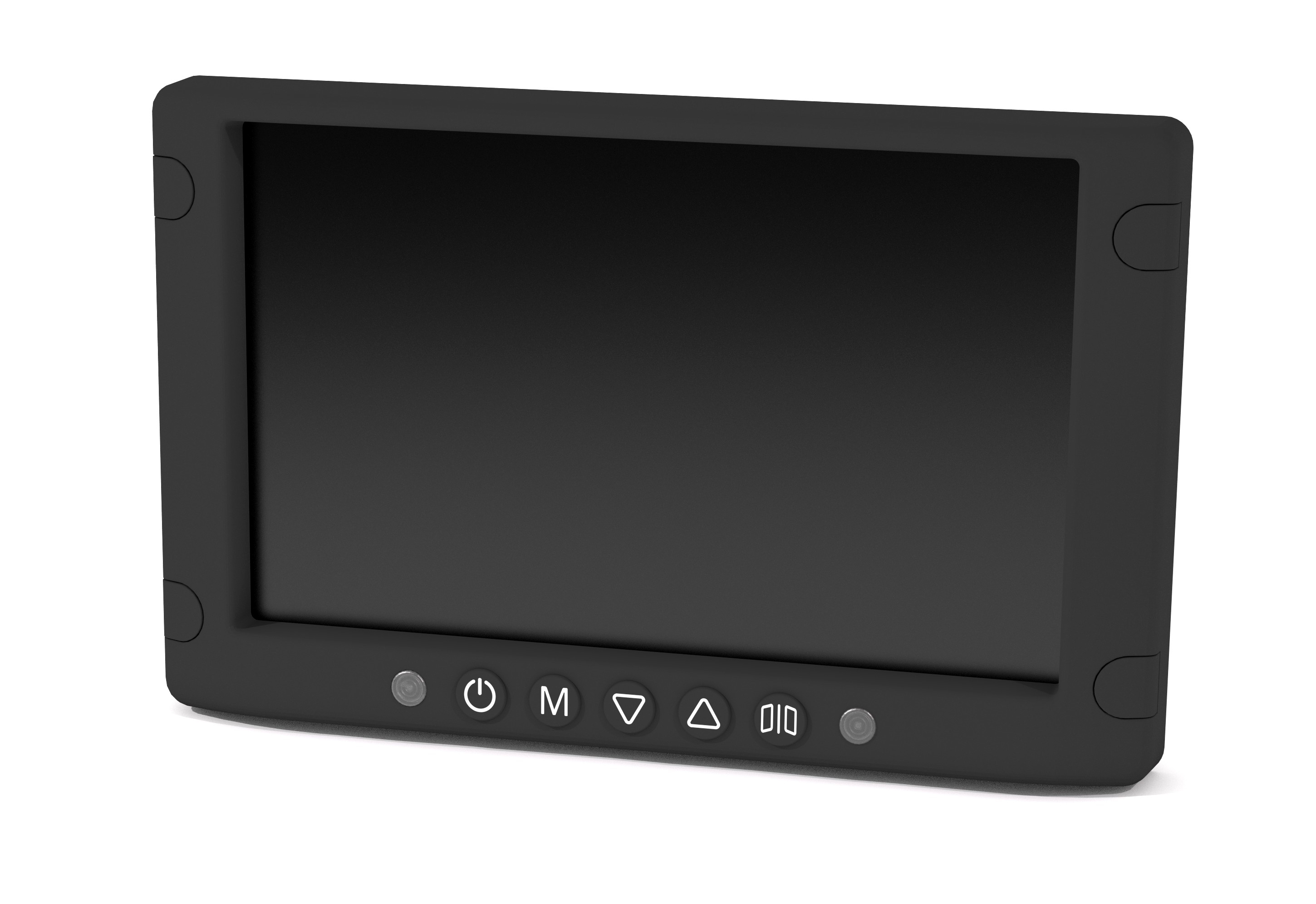

IP Monitor GMM-101 10‘‘


  • • Intelligent displays for surveillance and public safety
  • • Digital signage
  • • Cost sensitive applications
  • • Industrial, medical and automotive applications


Here we have another slim and highly sophisticated display system for making your individual solutions come true. Our next generation display IP Monitor is also available in a size of 10’’. Thus it offers you many options for displaying such as Full HD video content, video analysis, live decompression and IP-streaming. On the TFT display an integrated graphical OSD, scaling, quad split and zoom can be implemented.

This most modern industrial monitor has the capability to fit a wide number of applications. It processes video input in Analog PAL/NTSC composite, Analog HD Y/C, Digital HDMI 1.4 and Digital 3G HD-SDI. If you wish we can configure it with several available interfaces like wireless, wired Ethernet, USB 2.0, SATA or HDMI. Various serial protocols can serve for highest degrees of individualization.


Datasheet (PDF)

Product Features

    Processor System
  • • Cortex A8 processor, 1GHz
  • • 3D GPU
  • • 512MB DDR3 DRAM, 8GB eMMC flash
  • • USB2.0 host/device/OTG
  • • MicroSD card, Gigabit-Ethernet IEEE.802.3z
    TFT Display
  • • Size: 10“
  • • Resolution: 1024x600px
  • • Brightness: 450cd/m2
  • • Capacitive Touch with glass cover
    Power Supply
  • • Operating Voltage: +9-36V
  • • Power dissipation: approx. 5W
    Environmental / Mechanical
  • • Size: approx 180x100x30mm (depends on final design)
  • • Operating Temp: -20°C to +85°C
  • • RoHS compliant, CE
